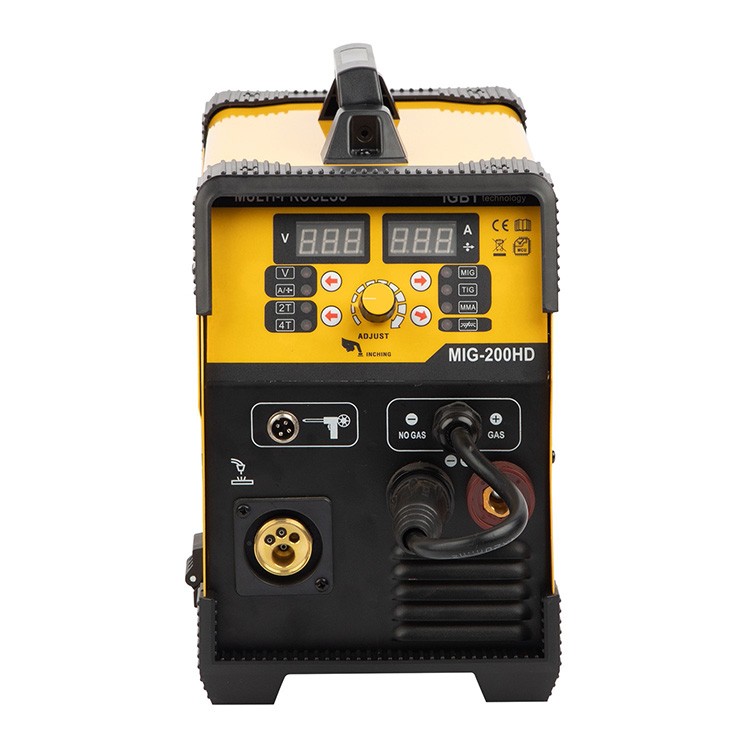

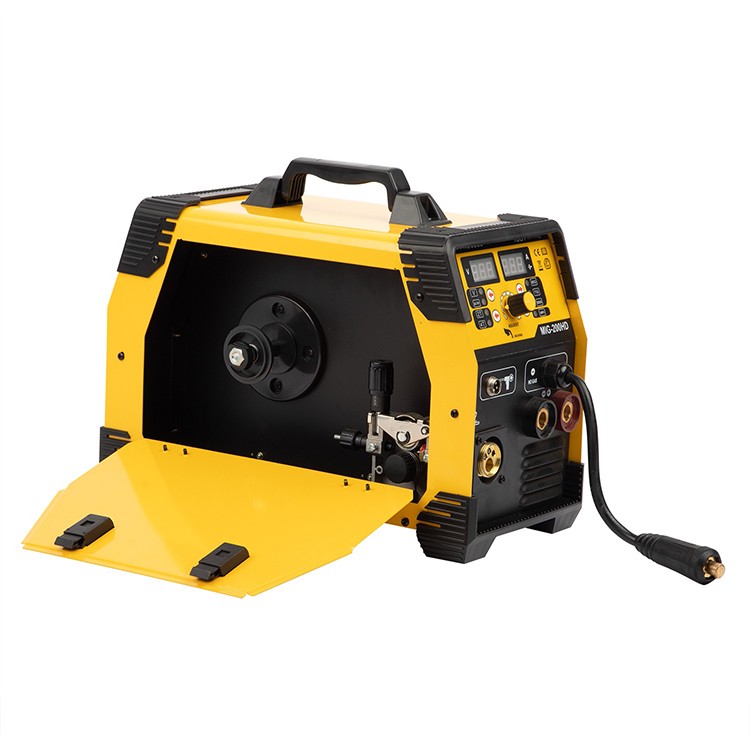

MIG-160HD 180HD 200HD

EMAIL

1).110V/220V Dual input voltage can be optional. Adopt advanced IGBT inverter and PWM technology.

2). MIG/MMA/LIFT-TIG, 2T/4T and multi-process, Built-in arc force and hot start. Spool gun can be optional.

3). With Inductance regulation to control welding arc characteristic (from soft to hard).

4). Unique steel housing with Innovative human engineering handle.

5). Easy to operate front cable connector to change polarity conversion, can suit solid wire (Gas welding) or Flux wire (Gasless welding).

6). Welding voltage setting, exactly match with the welding current, wire feeder speed also can be controlled.

7). Digital display, effective spatters control, improved penetration and better welding performance.

8). 1Kgs or 5Kgs (Standard) spool holder can be optional. Inching wire function, easy to install wire.

9). Special bottom air duct can have better heat dissipation.

MODEL

MIG-160HD

MIG-180HD

MIG-200HD

MIG-250HD

Welding Function

MIG

MMA

MIG

MMA

MIG

MMA

MIG

MMA

Order code

HL-2531HD

HL-2532HD

HL-2533HD

HL-2534HD

Input Voltage

1*220V-240V

1*220V-240V

1*220V-240V

1*220V-240V

Frequency

50/60HZ

50/60HZ

50/60HZ

50/60HZ

Input Capacity

4.5KVA

4.3KVA

5.3KVA

5.1KVA

6.1KVA

5.8KVA

7.2KVA

7.0KVA

Current Range

40-160A

20-140A

40-180A

20-160A

40-200A

20-170A

40-220A

20-200A

Rated Duty Cycle

60%

60%

60%

60%

Welding Wire

0.6/0.8/0.9/1.0mm

0.6/0.8/0.9/1.0mm

0.6/0.8/0.9/1.0mm

0.6/0.8/0.9/1.0mm

Insulation Class

F

F

F

F

Protection Degree

IP21S

IP21S

IP21S

IP21S

Machine Size

460*210*290mm

460*210*290mm

460*210*290mm

460*210*290mm

Machine Weight

10.5KG

10.5KG

11.0KG

12.0KG

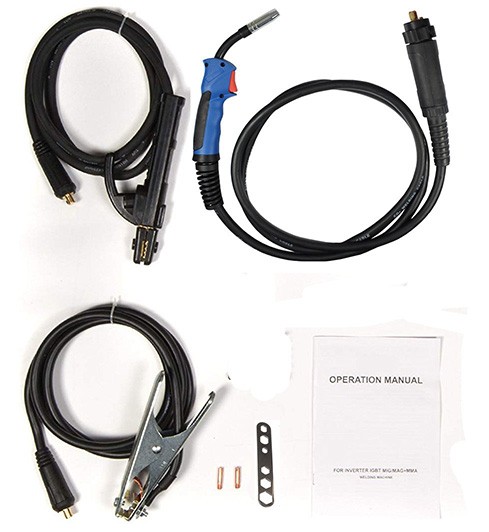

Accessories

15AK MIG TORCH WITH 3M CABLE, ELECTRODE HOLDER WITH 2M CABLE,

EARTH CLAMP WITH 2M CABLE.

MOQ

100Pcs

100Pcs

100Pcs

100Pcs

Price
