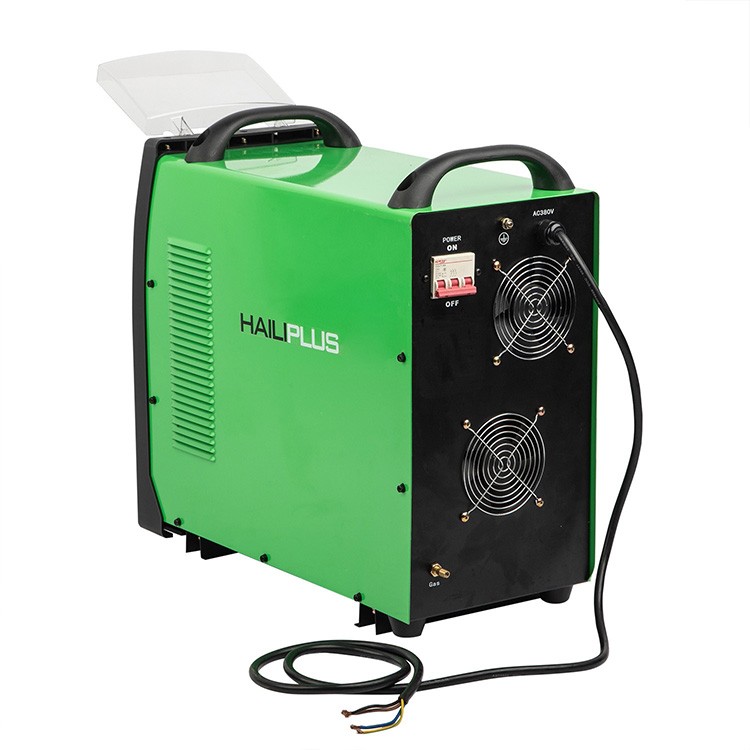

PRO TIG-315P 350P AC/DC LCD

EMAIL

Features:

1). Adopt High performance 32-bit MCU digital technology, and IGBT & advanced PWM inverter technology,

3PCB structure with high duty cycle, suitable for professional welding and easy to repair.

2). Multi-function for precision welding, AC MMA, DC MMA, DC TIG, DC PULSE TIG, AC TIG, AC PULSE TIG,

10 Channels customized Program Store to convenient for operating.

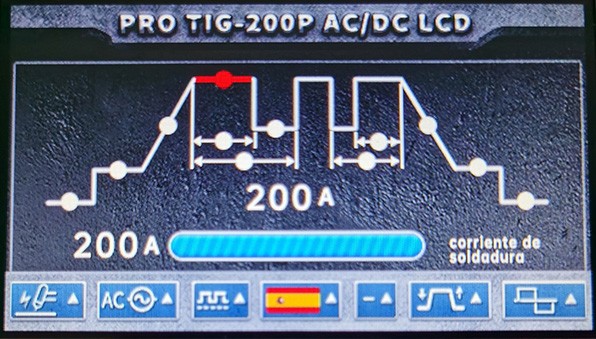

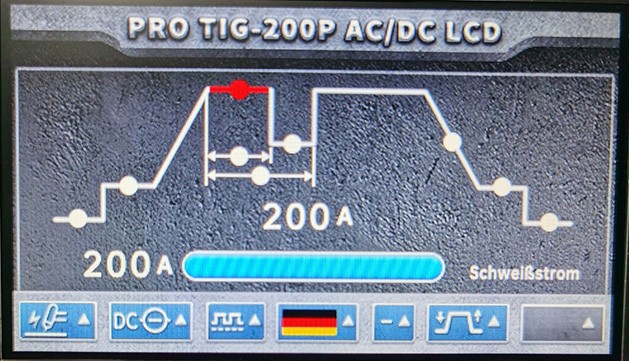

3). 4.3’’Inch High-definition Colorful LCD, Easy-to-user interface, Support English, German, Polish, Russian, Spanish, Portuguese, French and Chinese, more languages can expand.

4). Digital set of Pre-Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time with the choice of 2T or 4T or Spot trigger function allows controlling the start and finish of the weld process at a professional level. Digital Pulse Frequency Control gives full parameter setting of Peak Current, Base Current, Pulse Frequency and Pulse Width, allowing control of heat input into the work for penetration control and minimizing distortion, gain the ideal balance between cleaning the aluminum surface of oxide.

5). Both Spot/Dead (Interval) Time can be adjusted, also called cold welding can expand more application.

6). Unique housing design with high-strength plastic All-around corner protection, innovative human engineering handle.

7). Selectable Multi-Waveform output to meet different job:

Sine wave, square wave, trapezoidal wave and triangular wave.8). Excellent performance for aluminum and magnesium welding, special for thin plate welding.

9). AC balance (15-50%) control monitors the oxide and helps better cleaning during Aluminum welding.

10). Good Arc-stiffness and concentrated heat; Stable Arc without spatter, good shaping and less deformation.
11). Weld with various materials such as Aluminum, magnesium, steel, stainless steel, titanium, cooper, nickel and their alloys.

12). With Wide Voltage Function, work well and stably between voltage 150V-270V or together with Generator.

13). With optional foot pedal control and automatic detection, switch function, Perfect when doing pipe welding.



Technical Parameter

Model

PRO TIG-315P AC/DC LCD

PRO TIG-350P AC/DC LCD

Input Voltage(V)

3*380V-410V

3*380V-410V

Frequency (Hz)

50/60

50/60

Power Capacity (KVA)

9.8

11.3

TIG/MMA Current range(A)

5~315 / 20~280

5~350 / 20~320

ARC Force Current range(A)

0-100

0-100

Hot Start Range(A)

0-100A

0-100A

Spot Time(S)

0-15S

0-15S

No-load Voltage(V)

65

65

Rated Duty Cycle (%)

60

60

Pulse Frequency (Hz)

0.5~1000

0.5~1000

Pulse Duty (%)

10~90

10~100

AC TIG Frequency (Hz)

0.5~250

0.5~250

AC TIG Balance (%)

15~50

15~50

Up/Down Slope Time(S)

0.0~15.0

0.0~15.0

Pre/Post Flow Time(S)

0.1~15.0

0.1~15.0

Basic current range (A)

5~315

5~350

Remote control

Yes

Yes

Memory Function

Yes

Yes

Efficiency (%)

85

85

Power Factor

0.93

0.93

Protection Class(S)

IP23

IP23

Insulation Class

F

F

Dimension(mm)

580*260*365

580*260*365

Weight (Kg)

33

34

Accessories

TIG-18 TORCH WITH 4M CABLE, ELECTRODE HOLDER WITH 2M CABLE,

EARTH CLAMP WITH 2M CABLE, 3M GAS HOSE, 2PCS HOSE CLAMP, Tool Kit.

MOQ

30Pcs

30Pcs

Price: Nylon Panels



Optional

Nylon Panel WS-7L Water Cooler:

WT-8 Trolley:
