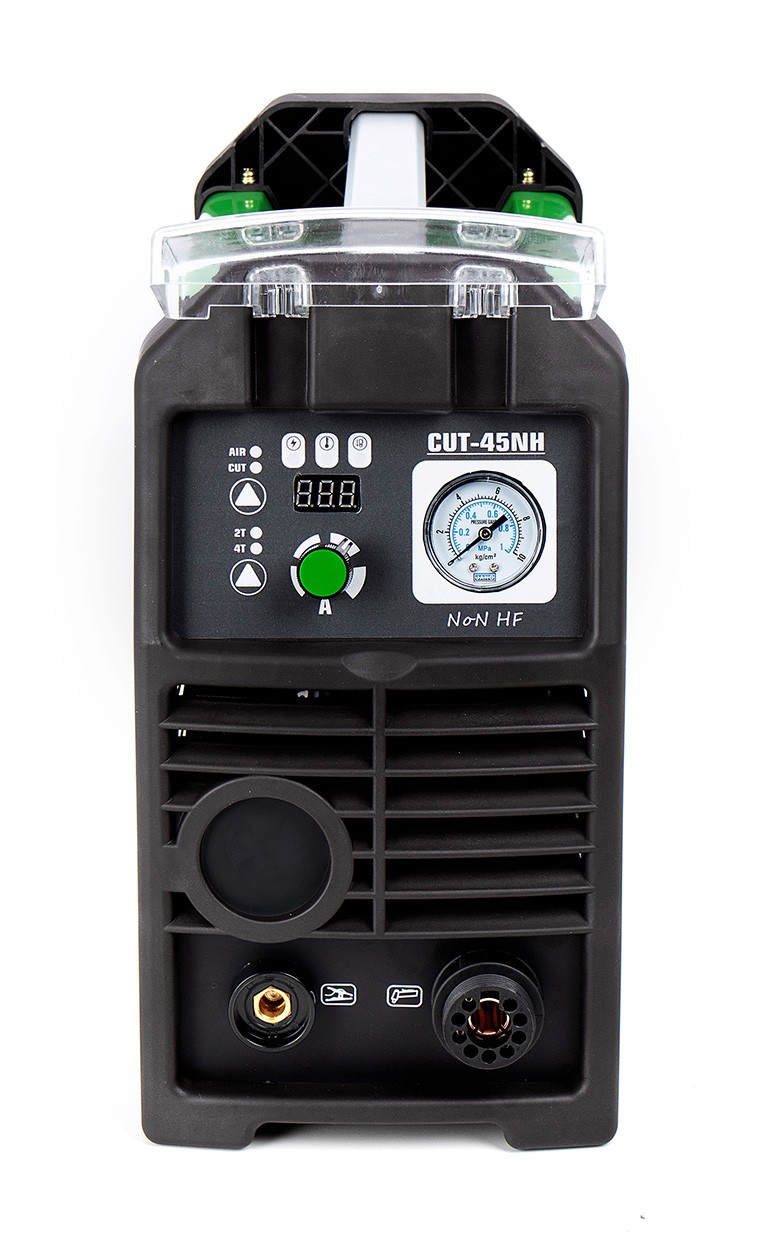

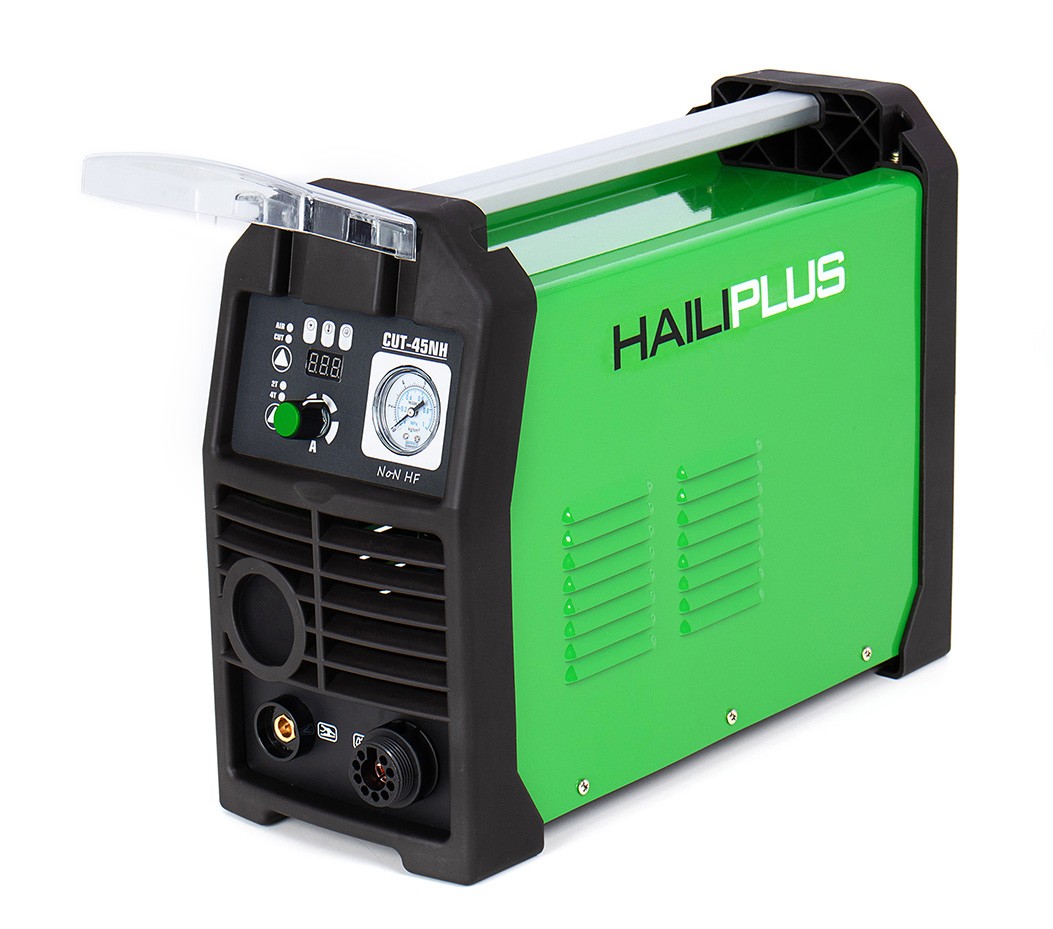

CUT-45NH

EMAIL

1). 110V/220V dual voltage can be optional.

Advanced (IGBT) inverter technology and Single PCB structure with high duty-cycle.

2). Lightweight but powerful, it can easily clean cut 16mm, Max Severance 20mm metal.

3). Non-HF Interfere, Non-Touch Pilot Arc, 2T/4T, Air Check, dual displays show current and air pressure.

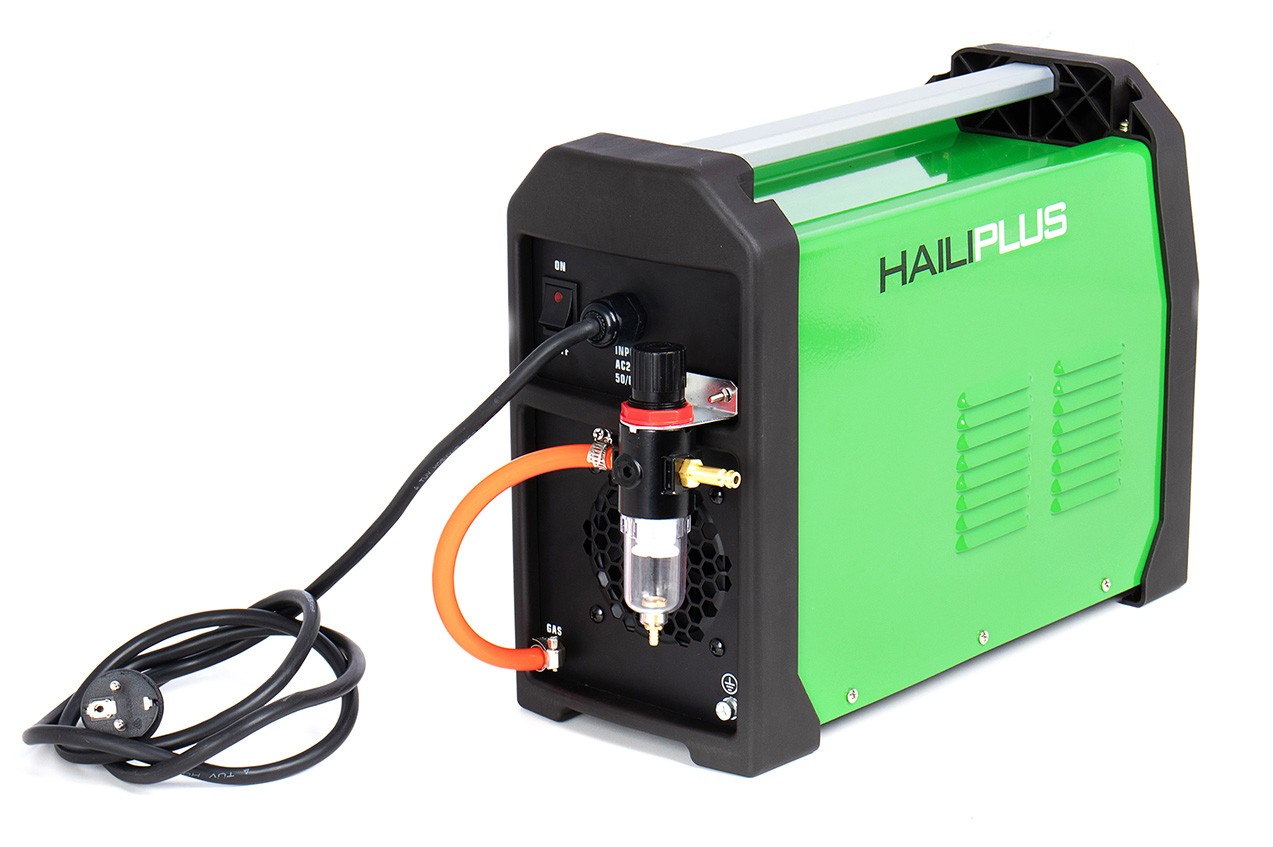

4). Built-in air regulator, safer and more convenient to operate.

4). Easy to cut thick metal plate in a fast and economical way.

5). Widely used for cutting carbon steel, stainless steel, copper and aluminum, etc.

Technical Parameter

Model

CUT-45NH

Max Cutting thickness(mm)

20

Input Voltage(V)

1*220V-240V

Frequency (HZ)

50/60

No load voltage(V)

290

Input capacity (KVA)

5.2

Current range(A)

20-40

Rated Duty Cycle (%)

60%

Insulation /Protection Class

F / IP21

Starting arc

Pilot

Power factor

0.93

Dimension (mm)

370*142*237

Weight (KG)

6

Accessories

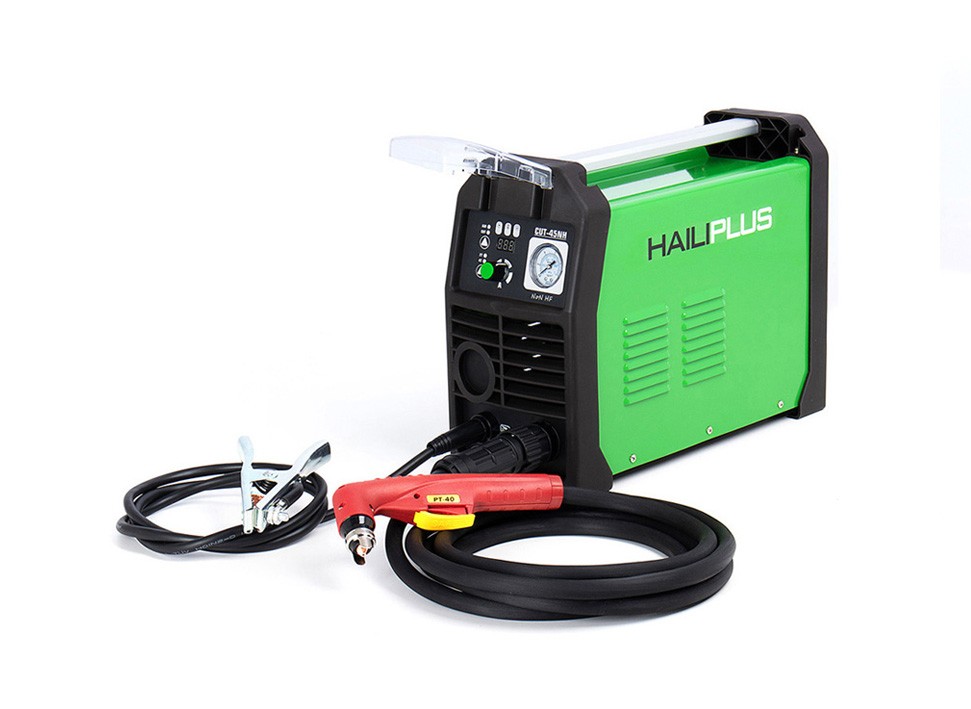

PT40 Plasma Torch With 4M Cable, Earth Clamp With 2M Cable.

MOQ

100PCS

Optional
