1), 110V/220V dual voltage can be optional. Adopt High performance 32-bit MCU and IGBT & advanced PWM technology.
2), DC Gas MIG/MAG, Gasless MIG, Lift-TIG, MMA, Support Spool Gun and multi-process functions.
3), Optional Digital control remote MIG Torch, allows you to adjust wire feed speed and voltage directly from the torch handle. during real time welding, providing you the ultimate in fingertip control.
4), Compact, lightweight, Suitable for 1Kgs/5Kgs Wire. Inching wire function, easy to install wire.
5), Outstanding welding performance, especially for thin plate welding, little weld spatter.

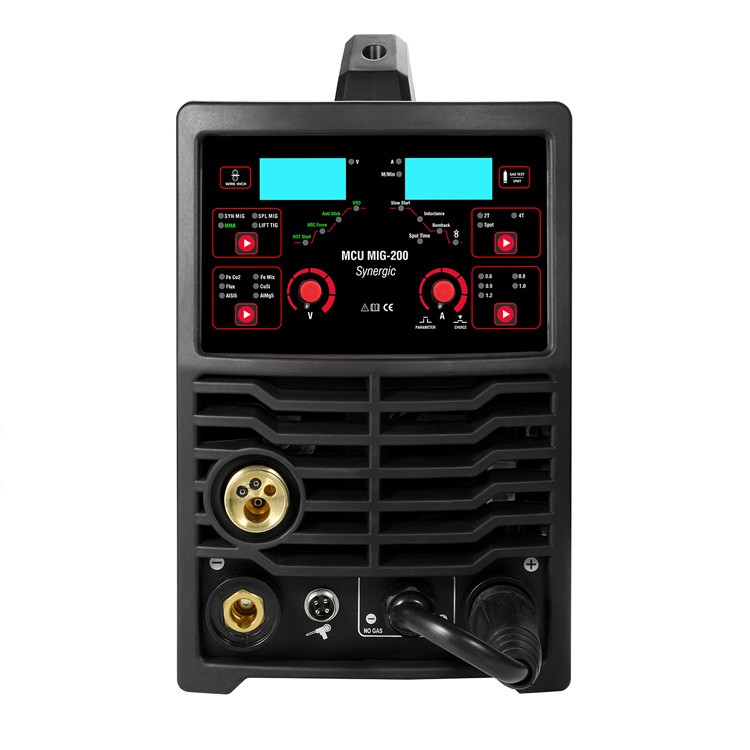

6), Easy-to-user interface, Synergic Home Function, dynamic control Digital display with very simple operations.
Synergic MIG, Manual adjustment MIG, MMA, Lift-TIG welding mode.
Preset synergic database:
Argon+Co2 Mixed and 100% Co2 solid wire, Flux wire, AlSi and AlMg aluminum wire, brazing cusi3 wire to choose.
0.6-0.8-0.9-1.0-1.2MM various welding wire diameter.
2T/4T/SPOT torch operate mode.
Adjustable arc length, slow-start, inductance, burn-back, spot time, VRD, ARC force and Anti-stick.
with these super functions and can let user without any experience also can operate machine very well only need 1 minute.
7), MIG welding voltage and wire speed also can be manual setting for skilled user.
8), Unique housing design with high-strength plastic All-around corner protection, innovative human engineering handle.
9), Premium 35-50MM2 cable connector, easy to change polarity conversion.
10), With Wide Voltage Function, work well and stable between voltage 150V-270V or together with Generator.
11), Spool gun can be optional.
Rated input Voltage (V)
Rated input power (KVA)
Current range (MMA) (A)
Current range (MIG) (A)
Voltage range (MIG) (V)
No-Load voltage (V)
Wire Feed speed (m/min)
Wire diameter (mm)
Rated Duty Cycle (%)
Efficiency (%) / Power Factor
85 / 0.75
85 / 0.75
85 / 0.75

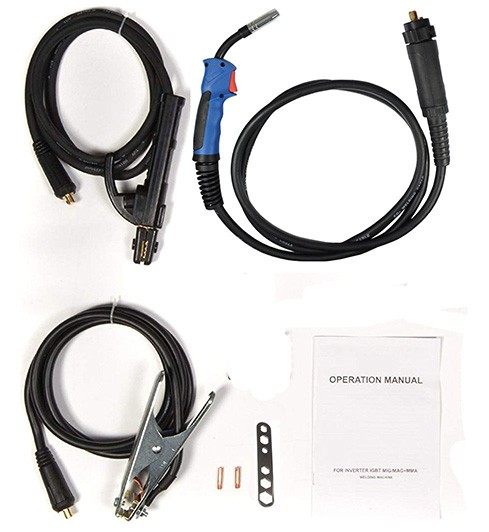

15AK TORCH WITH 3M CABLE,
ELECTODE HOLDER WITH 2M CABLE,
EARTH CLAMP WITH 2M CABLE.
