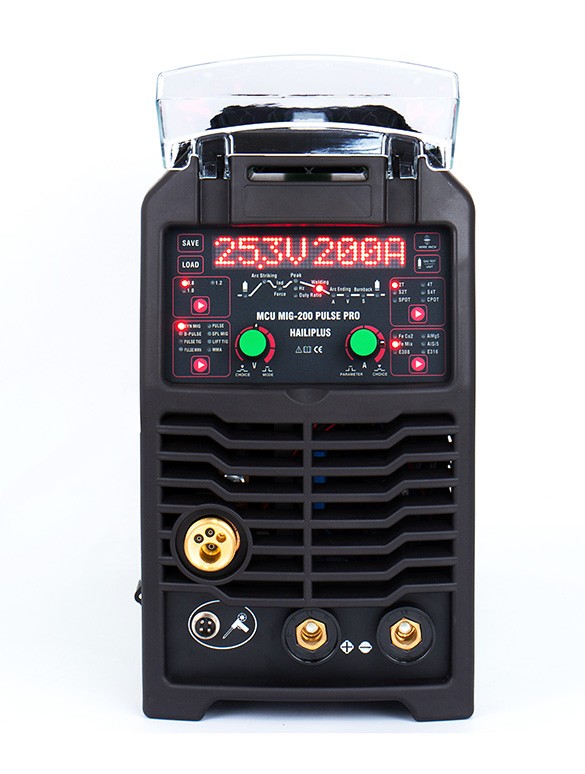

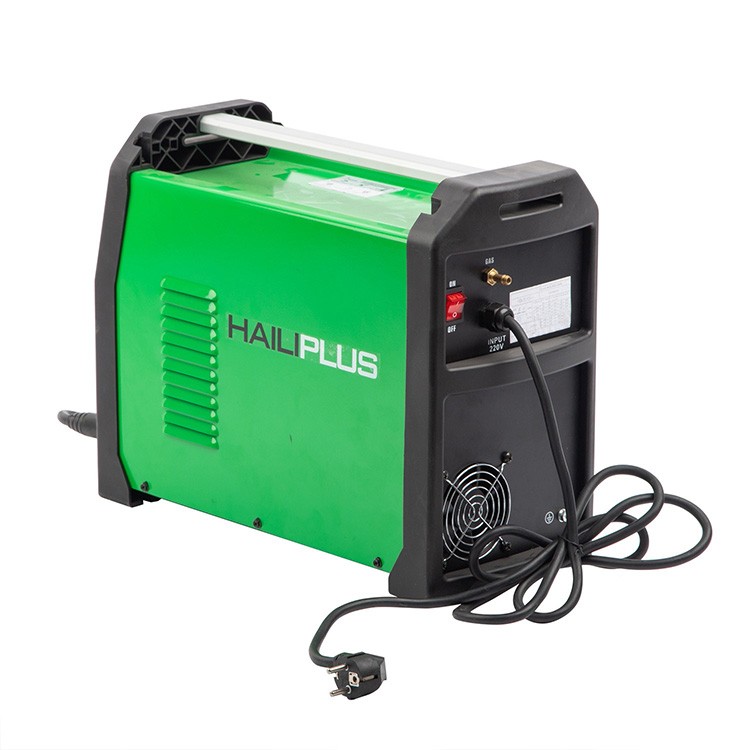

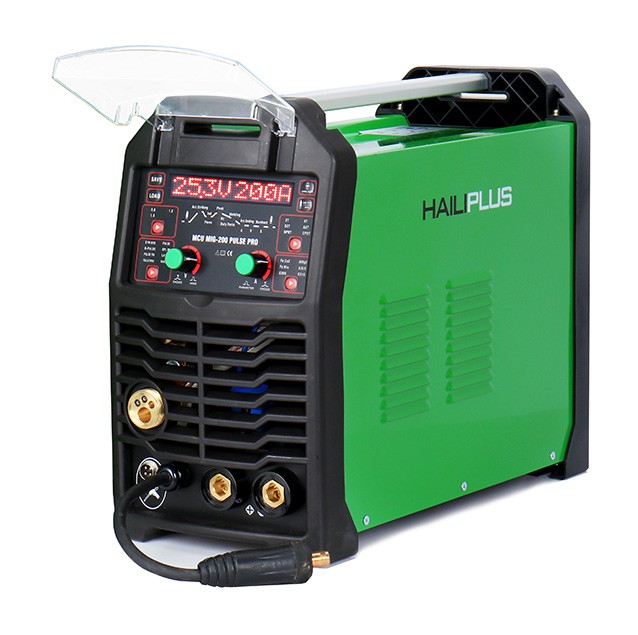

MCU MIG-200 Pulse

EMAIL

 Features:

1), 110V/220V dual voltage can be optional.

Adopt High performance 32-bit MCU digital technology and IGBT & advanced PWM inverter technology.

2), DC synergic MIG, Single & Double Pulse MIG, Lift-TIG, Pulse TIG, MMA, Pulse MMA, spool Gun process.

adjustable inductance, 2T/4T, Spot welding time, burn-back, Pre & Post gas time, Pulse Frequency,

Duty Ratio, Pulse Width, Base & Peak Arc length, VRD, ARC force, hot start and other parameter.

35 Channels customized Program Store to convenient for operating.

Support remote adjust wire speed & voltage MIG torch and machine can recognize torch automatically.

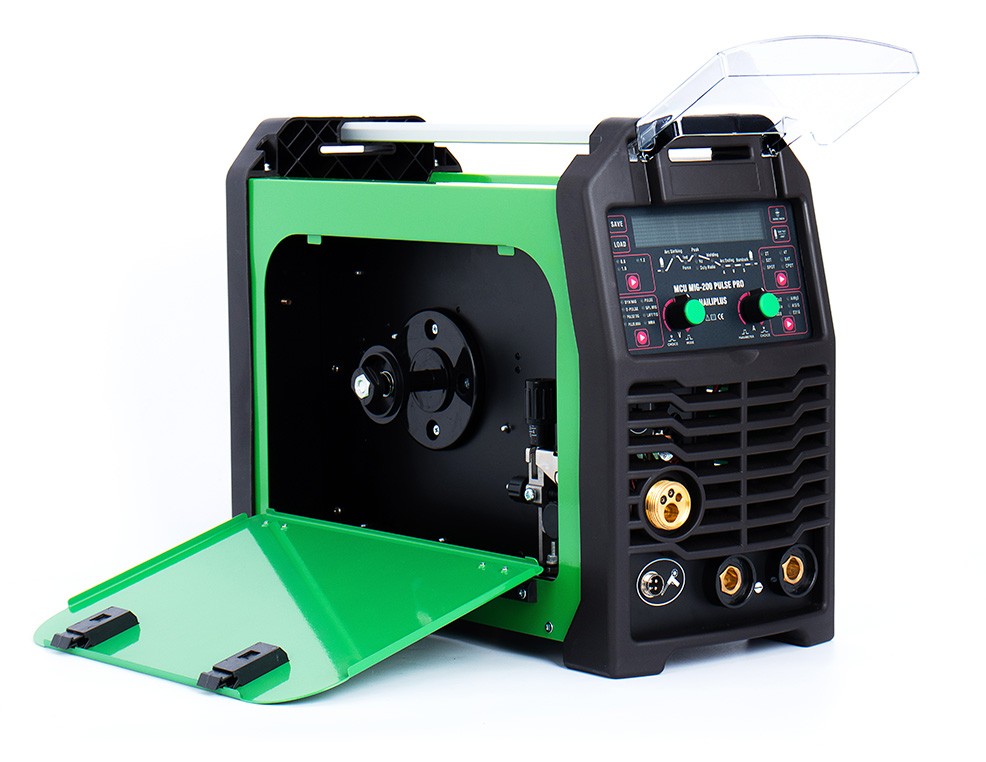

5Kgs spool holder with Inching wire function, easy to install welding wire.

3), Outstanding welding performance, especially for thin plate welding.

   Suitable for Carbon Steel, Flux, E308 E316 stainless steel, AlSi5, AlMg5 aluminum welding wire.

   Suitable for E6010, E6011 Cellulose electrode.

4), Easy-to-user interface, Synergic Home Function automatically manages ideal voltage and wire feed speed while only adjusting welding current; dynamic control Digital display with very simple operations.

5), Preset synergic database, with special aluminum sheet expert database.

6), MIG welding voltage and wire speed also can be manual setting for skilled user.

7), Unique housing design with high-strength nylon plastic, innovative human engineering handle.

8), Premium 35-50MM2 cable connector, and easy to change polarity conversion,can suit Solid wire (Gas welding) or Flux wire (Gasless welding).

9), With Wide Voltage Function, work well and stable between voltage 150V-270V or together with Generator.

10), Compact, little splash, Intelligent Protection, over-voltage, low-voltage, over-current, over-heat etc.

11), Spool gun, Dual drive wire feeder can be optional.

Technical Parameter

Model

MCU MIG-200 PULSE

Rated input Voltage (V)

1*220V-240V

Rated input power (KVA)

6.1

Current range (MMA/TIG) (A)

10~180

Current range (MIG) (A)

30~200

Voltage range (MIG) (V)

11~26

No-Load voltage (V)

60

Wire Feed speed (m/min)

1.5~16

Wire diameter (mm)

0.8/1.0/1.2

Rated Duty Cycle (%)

60

Frequency (Hz)

50/60

Efficiency (%)

85

Pre/Post Flow Time (S)

0-10S / 0.1-50S

Pulse Frequency (Hz)

0.5-5.0Hz

Pulse Width ((Ip-p))

5%50%

Base / Peak Arc Length

-50%50%

Power Factor /

Protective class

0.75 / IP21S

Dimension (mm)

490*220*390

Weight (Kg)

15

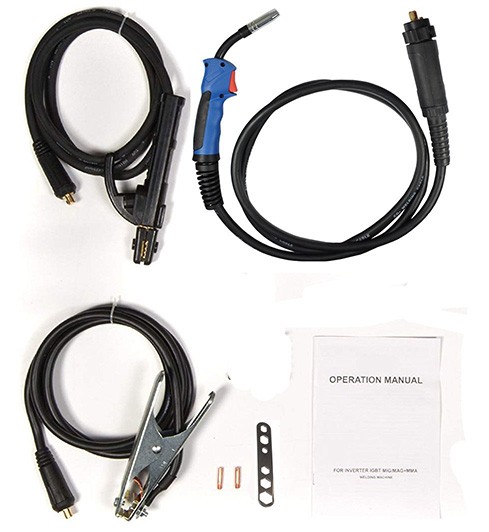

Accessories

25AK ALUMINUM +360°Angle Rotated REMOTE TORCH WITH 3M CABLE,

TELFON LINER,” U” Groove Roller,

ELECTODE HOLDER WITH 2M CABLE,

EARTH CLAMP WITH 2M CABLE, 3M GAS HOSE, 2PCS HOSE CLAMP.

Moq

50Pcs

Price: Nylon Panels
