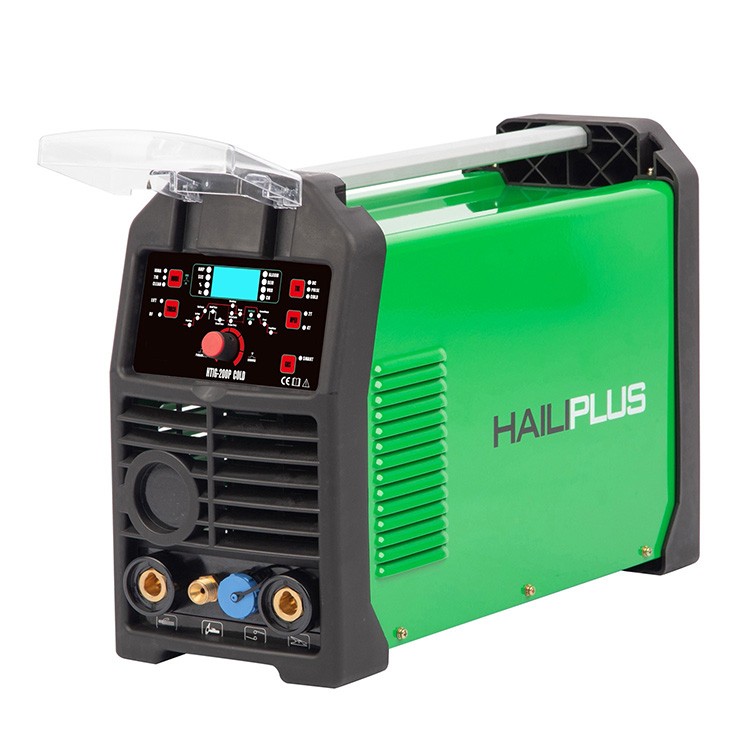

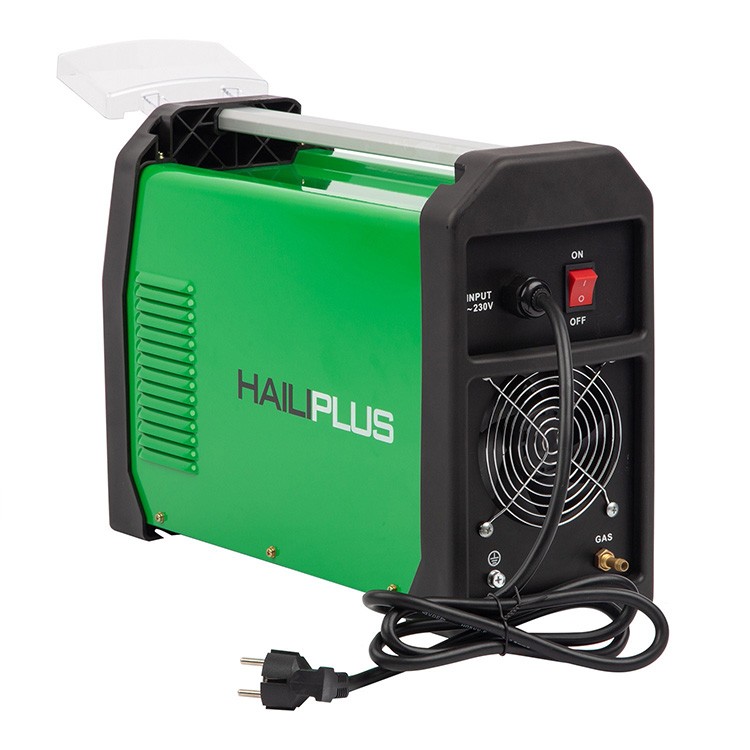

HTIG-200P COLD

EMAIL

Features:

1). Adopt High performance 32-bit MCU digital technology, and IGBT & advanced PWM inverter technology,

2). Multi-function for precision welding,

DC MMA, (Pulse)DC TIG, (Pulse)Lift TIG, COLD TIG, TIG Clean, TIG Gas save smart.

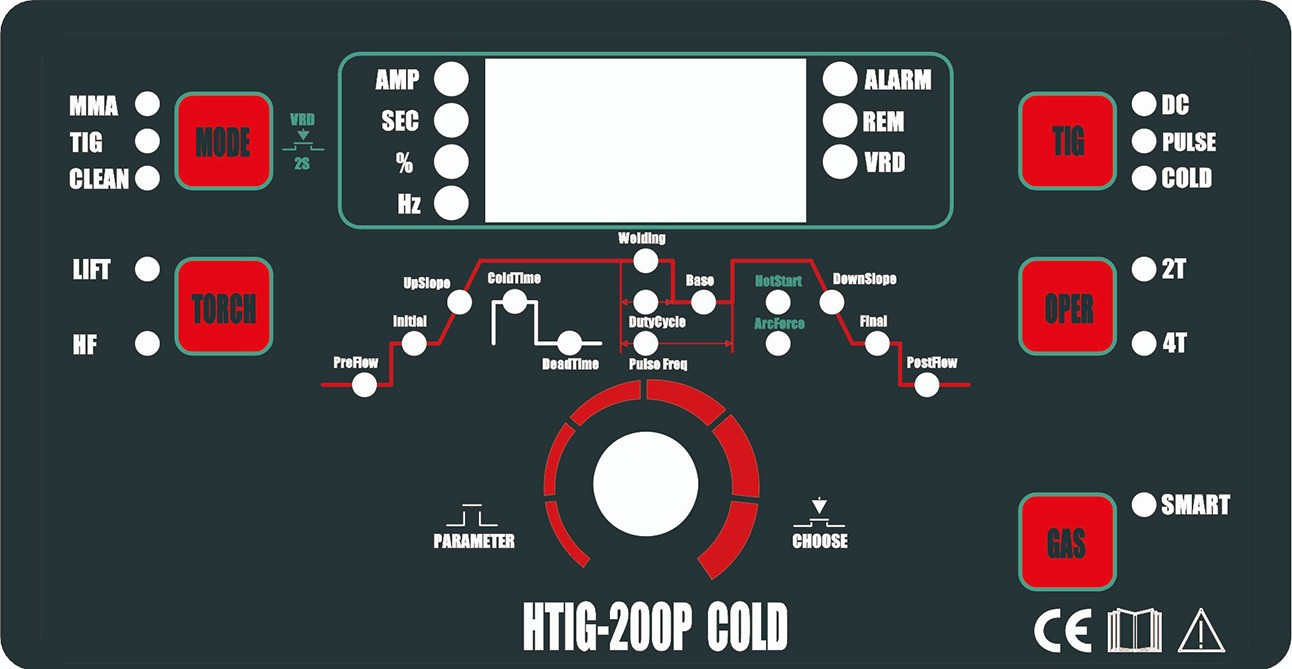

3). Easy-to-user interface, Digital set of Pre-Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time with the choice of 2T or 4T trigger function allows controlling the start and finish of the weld process at a professional level. Digital Pulse Frequency Control gives full parameter setting of Peak Current, Base Current, Pulse Frequency and Pulse Width, allowing control of heat input into the work for penetration control and minimizing distortion, gain the ideal balance.

4). Both Cold/Dead (Interval) Time can be adjusted, named cold welding can expand more application.

5). Unique housing design with high-strength plastic All-around corner protection, innovative human engineering handle.

6). Customized Company Name and Logo can show on the true color magic and friendly display with impact resistance.

7). Excellent welding performance, special for thin plate welding.

8). Good Arc-stiffness and concentrated heat; Stable Arc without spatter, good shaping and less deformation.
9). Weld with various materials such as steel, stainless steel, titanium, cooper, nickel and their alloys.

10). With Wide Voltage Function, work well and stably between voltage 150V-270V or together with Generator.

11). With foot pedal control and automatic detection, switch function, Perfect when doing pipe welding.

pedal control can be optional.

Technical Parameter

Model

HTIG-200P COLD

Input Voltage(V)

1*220V-240V

Frequency (Hz)

50/60

Power Capacity (KVA)

4.6/7.2

Max Input Current (A)

31

TIG/MMA Current range(A)

5~200 / 20~180

ARC Force Current range(A)

0-100

No-load Voltage(V)

65

Rated Duty Cycle (%)

60

Pulse Frequency (Hz)

0.5~1000

Pulse Duty (%)

10~90

Cold/Dead Time(S)

0.01-15S/0-15S

Up/Down Slope Time(S)

0.0~15.0

Pre/Post Flow Time(S)

0.1~15.0

Basic current range (%)

10-90

Efficiency (%)

85

Power Factor

0.93

Protection Class(S)

IP23

Insulation Class

F

Dimension(mm)

400*150*230

Weight (Kg)

7

Accessories:

TIG-17 TORCH WITH 4M CABLE, ELECTRODE HOLDER WITH 2M CABLE,

EARTH CLAMP WITH 2M CABLE

Moq:

100Pcs

Price:


Option:

3M TIG Clean Torch,
