MTM-200

EMAIL

Features:

1). Adopt High performance 32-bit MCU digital technology, and IGBT & advanced PWM inverter technology,

high duty cycle, suitable for professional welding and easy to repair.

2). Multi-function for precision welding, SYN MIG, MMA, DC TIG, DC PULSE TIG, SPOT WELDING.

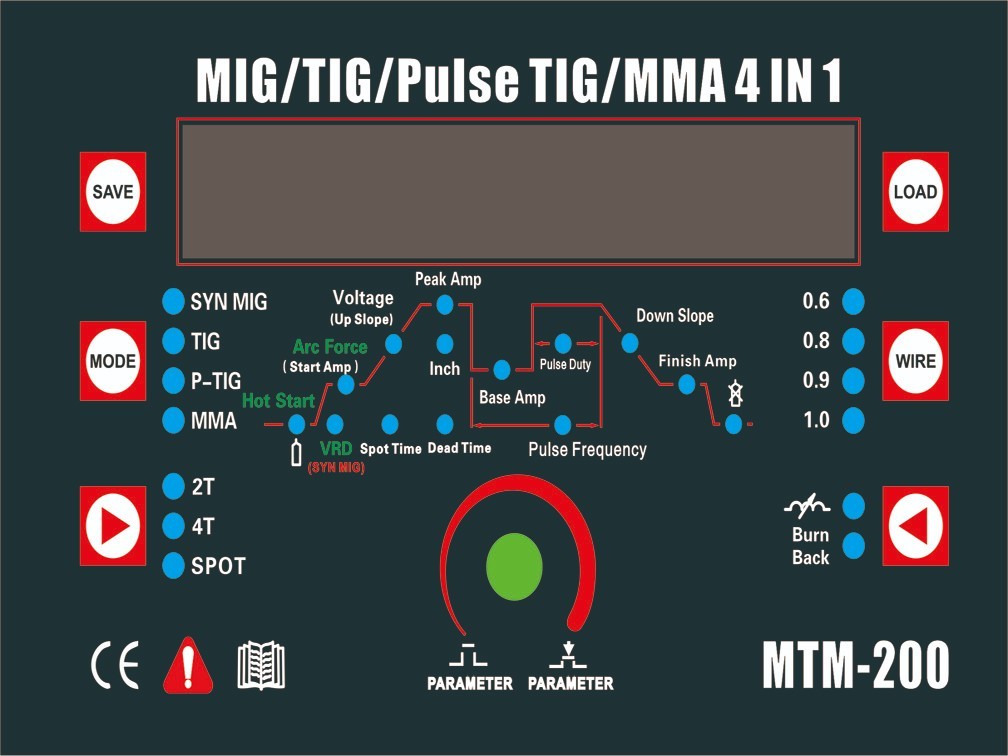

  Easy-to-user interface.

3), Syn MIG: Welding Current/Voltage/Inductance/Burn Back can be adjusted, 2T/4T, Wire size can be chosen.

4), HF-TIG: Pre-Gas/Start Amp/Up Slope/Welding Current/Down Slope/Finish Amp/Post Gas can be adjusted,2T/4T/SPOT (Cold welding) can be selective, Spot time and dead time can be adjusted.

5), Pulse HF-TIG: HF-TIG Process + Pulse Duty/Pulse frequency can be adjusted, 2T/4T.

6), MMA: Hot start/Arc Force/Welding Current can be adjusted, VRD can be selective.

7), 10 Channels customized Program Store to convenient for operating.

8), Both Spot/Dead (Interval) Time can be adjusted, also called cold welding can expand more application.

9). Unique housing design with high-strength plastic All-around corner protection,

innovative human engineering handle.

10). With Wide Voltage Function, work well and stably between voltage 150V-270V or together with Generator.

11). With foot pedal control and automatic detection, switch function, Perfect when doing pipe welding.

pedal control can be optional.

Technical Parameter

Model

MTM-200

Input Voltage(V)

1*220V-240V

Frequency (Hz)

50/60

Power Capacity (KVA)

7.1

No-load Voltage(V)

65

Rated Duty Cycle (%)

60

MIG/TIG/MMA Current range(A)

30~200 / 10~200 / 20~180

ARC Force Current range (%)

0-150

Hot Start Range (%)

0-150

Sync MIG

Wire size (mm)

0.6,0.8,0.9,1.0

Pulse TIG

Base Current (%)

10-100

Pulse Frequency (Hz)

0.2-500

Duty Cycle (%)

5-95

Base / Final Current (%)

10-100

Up / Down Slope Time (S)

0.0~10.0 / 0.0~15.0

Pre / Post Flow Time (S)

0-10 / 0.5~15.0

Spot / Dead (Interval) Time (S)

0.1~15.0 / 0.0~15.0

Efficiency (%)

85

Power Factor

0.93

Protection Class(S)/ Insulation Class

IP23 / F

Dimension(mm)

490*220*390

Weight (Kgs)

13

Moq

100 Pcs

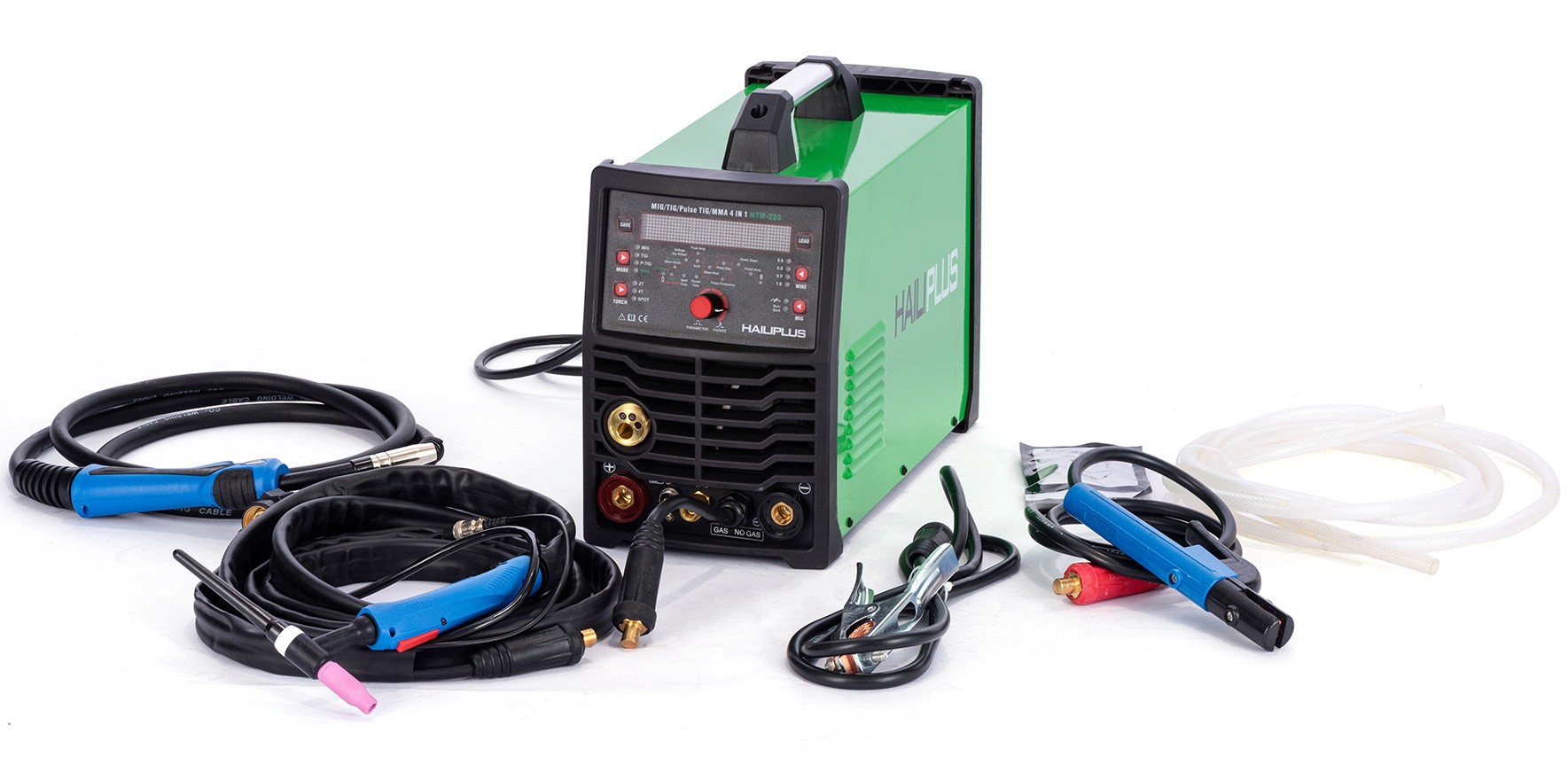

Accessories

15AK TORCH WITH 3M CABLE, TIG-17 TORCH WITH 4M CABLE,

ELECTODE HOLDER WITH 2M CABLE,

EARTH CLAMP WITH 2M CABLE, 3M GAS HOSE,

2PCS HOSE CLAMP.
